Thermoplastic Premelters | Model TT Series

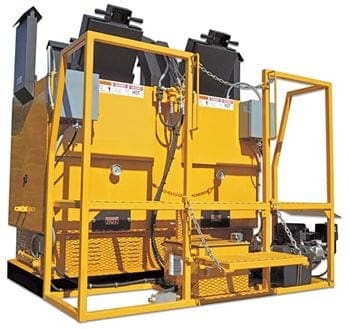

The TT Series Thermoplastic Melter offers the ability to adapt to any transport option needed. 20′ Power cords, LP hoses and hydraulic hoses allow LP bottles, power-pack, and premelter to be mounted independently for added safety and versatility. TT Premelter Systems are available in many capacities, and single or dual configurations.
- Automatic spark ignition systems allowing burners to be ignited with a simple switch.

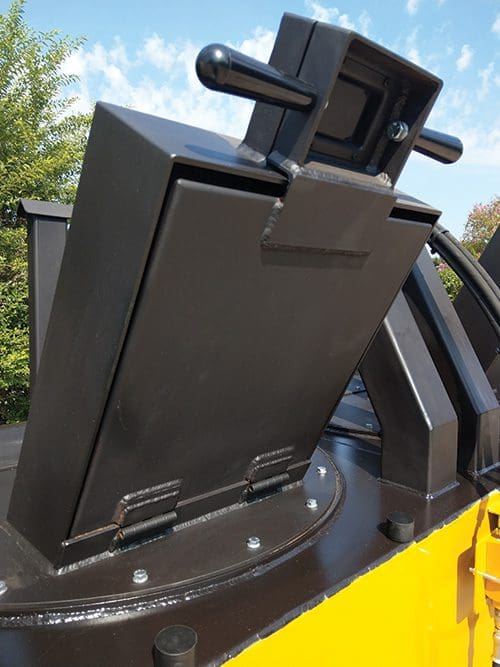

- Material feed doors designed to prevent injury to operator from molten splash and temperature flash.
- Hydraulic and LP hoses connect and disconnect instantly without leakage, allowing the unit to be loaded and unloaded safely and easily.

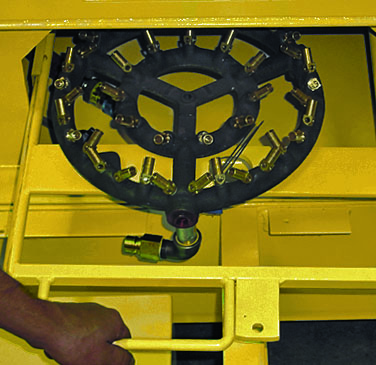

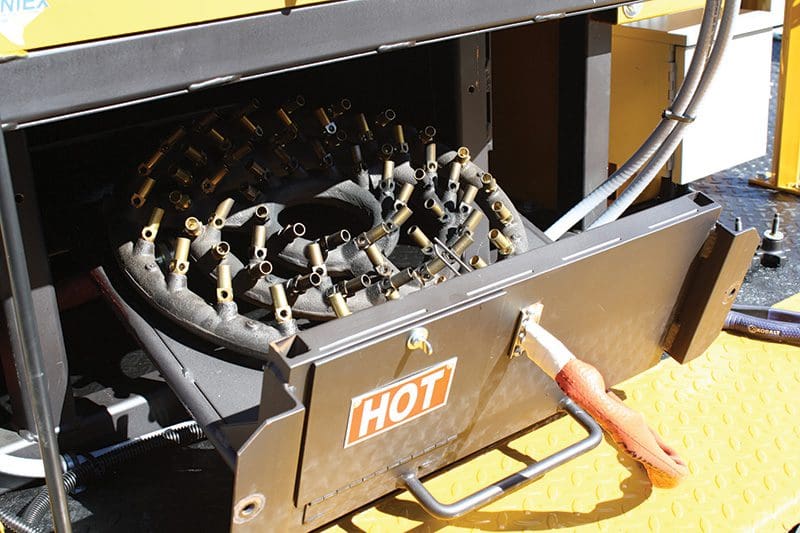

- Burner ring slides out on rack, allowing for easy service of jet burners.
Optional features include:
- Oil jacketed Cylinders
- Over-Night Heaters
- Diesel Power-pack Engines
- Custom Specified Engine/HP
- Fork Lift Pockets
- Stainless Steel Knife Gate Valves
- Custom Operator Decks
| Model No. | Capacity | Burner Rating | Standard Engine |
| 2T1000SH Single Unit |
1000 LBS. | 200,000 BTU |
8.5 HP LP Elec. Start |
| 2T1000DH Dual Unit |
2000 LBS. (2 x 1000) |
200,000 BTU x 2 |
8.5 HP LP Elec. Start |
| 2T1500SH Single Unit |
1500 LBS. | 275,000 BTU |
8.5 HP LP Elec. Start |
| 2T1500DH Dual Unit |
3000 LBS. (2 x 1500) |
275,000 BTU x 2 |
8.5 HP LP Elec. Start |
| 2T2000SH Single Unit |
2000 LBS. | 325,000 BTU |
10 HP LP Elec. Start |
| 2T2000DH Dual Unit |
4000 LBS. (2 x 2000) |
325,000 BTU x 2 |
10 HP LP Elec. Start |
| 2T3000SH Single Unit |
3000 LBS. | 400,000 BTU |
12 HP LP Elec. Start |
| 2T3000DH Dual Unit |
6000 LBS. (2 x 3000) |
400,000 BTU x 2 |
12 HP LP Elec. Start |
