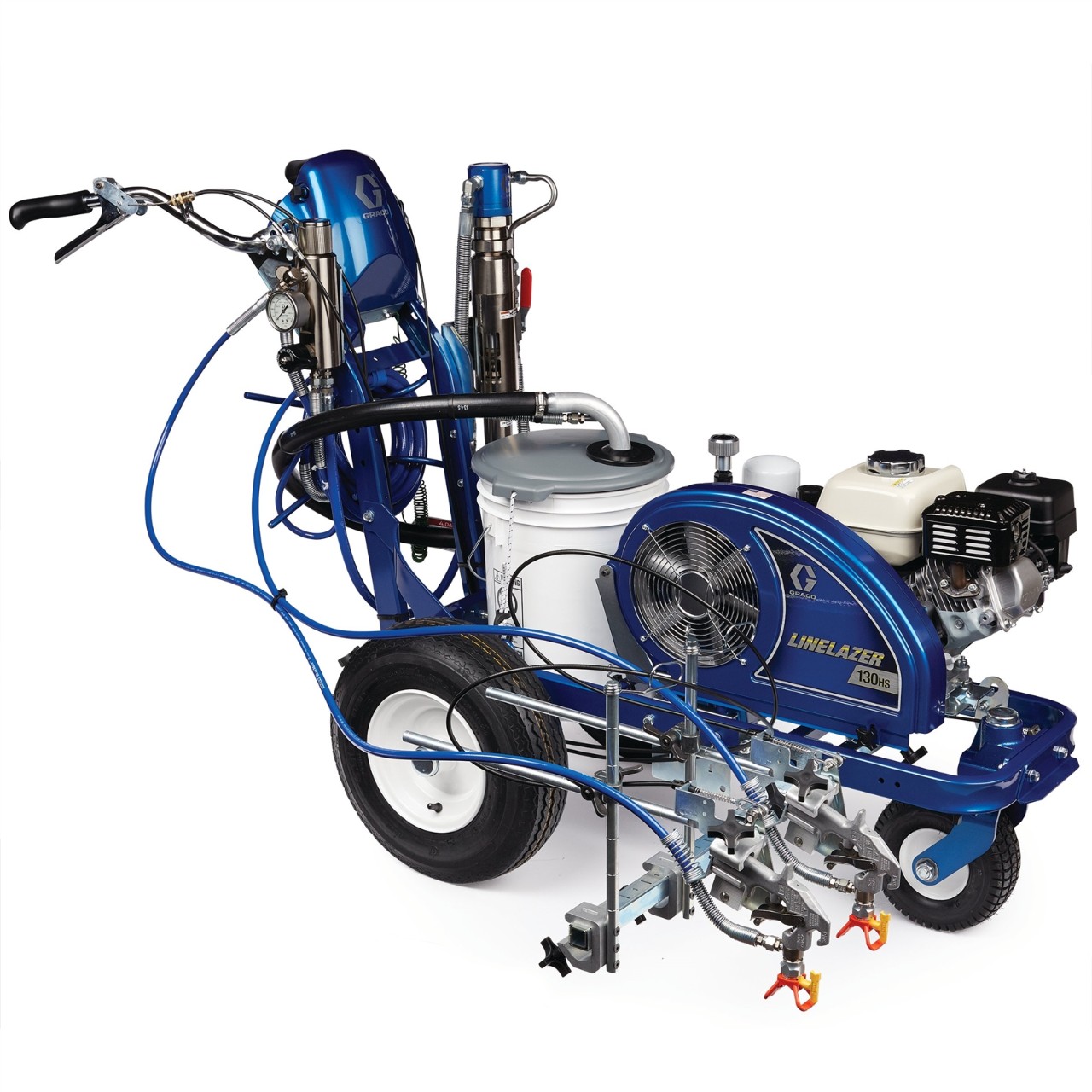

The LineLazer 130HS is the ultimate hydraulic airless striping unit that contractors rely on for their most challenging striping jobs. Professional striping contractors wanting hydraulic performance and proven power cannot go wrong with the LineLazer 130HS. As the preferred hydraulic striper for everyday jobs, it consistently delivers solid performance day in and day out.

High Capacity Cooling System

  • 20% larger hydraulic fluid reservoir keeps the system running cool
  • Innovative cooling fins wrap down and under the reservoir for improved air flow

EasyMark Gun Adjustment System

  • Simple guide mark system
  • Easy gun on/off, front/back
  • Perfect gun set up-every time

Storage Compartment

  • New compartment for tips, guards, and miscellaneous items

DualComfort Handle Bar System

  • Fits all users – easy to adjust
  • Solid 8-bolt design

EZ Align Front Wheel System

  • Keeps unit tracking straight
  • Intuitive design – simple to adjust

QuikSelect Gun Selector

  • Chrome gun lever for ease of use dependable operation

Honda Power

  • Contractor preferred – excellent power and proven reliability

Exclusive Easy Out Filter System

  • 50 mesh filter for no plug performance
  • Inside out filtering

Endurance Paint Pump

  • Industry best performance
  • Proven design with 25 years of success

Max Tip Size: .029 (Two Gun Unit Only) – 287025
Max psi/bar: 3300/227
Max gpm/lpm: 1.3/5.9
Weight lbs/kg: 240/108
Engine Size: 120cc Honda GX
Fuel Tank Capacity gallons/liters: 0.66/2.5
Material Sprayed: Most heavy, low VOC, waterborne and rubberized traffic paints
Typical Applications: Continuous, heavy-duty line striping requirements

Documents:

LineLazer 130HS Operation Manual
LineLazer 130HS Repair and Parts
LineLazer Product Brochure
