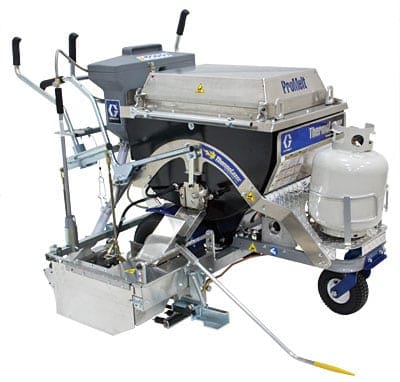

Graco Thermolazer Promelt
The ThermoLazer ProMelt unit allows stripers to get into the thermoplastic marking business with out the additional costs of a premelt kettle truck or trailer. The ThermoLazer Promelt System allows you to melt 300 lb of thermoplastic on-board in less than an hour.
Promelt Technology
100,000 BTU Four Chamber Melting System – more surface area to melt thermoplastic fast.
Easy Steer Handle Bar System
Makes turning and handling simple as a LineLazer System. Handle is fully adjustable for users of all sizes.
Ergonomic Design
Easier to use and almost efortless to push/pull.

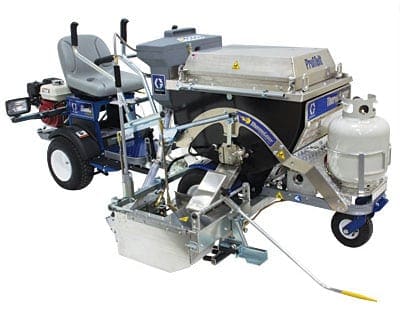

Optional LineDriver Attachment
Get higher productivity and straighter lines with less fatigue. Move between jobs with out having to push.
Smart Die II
- Fast change-out system – hardened steel dies with mil thickness adjustment built in
- Use with or without heat – allows you to optimize striping in all weather conditions
- “Floats” with the surface – puts the thermoplastic where you want it for superior line quality
PART No: 24H623
HOPPER SIZE: 300 lb
HOPPER CHAMBER: QuadMelt
INTERNAL MIXING PADDLES: QuadMix™
MELT TIME: Less than 1 hr
MAIN BURNERS: 100,000 BTU
TEMPERATURE LIMIT CONTROL: 475° Switch
DIES AVAILABLE: SmartDie II – 4″ Die Included
EXTERNAL 4-TORCH DIE HEAT SYSTEM: Optional
The ThermoLazer ProMelt unit allows stripers to get into the thermoplastic marking business with out the additional costs of a premelter kettle truck or trailer.
