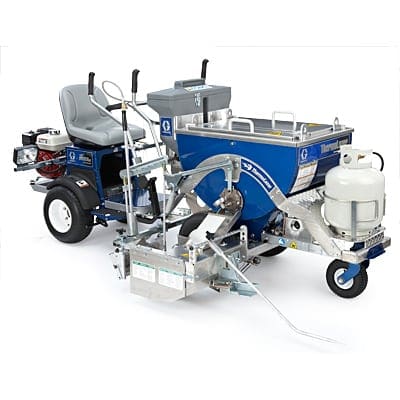

Graco Thermolazer 300TC
The Graco Thermolazer 300TC thermoplastic Striping System is ideal for general roadway striping and small intersections. Every Graco thermoplastic striping system is backed by our warranty coverage and more than 80 years of proven commitment to the professional contractor.
EasyGlide Wheel Mount System
Front mounted caster along with dual rear pneumatic air-filled tires makes handling safe and easy to maneuver as a LineLazer striper.
Tri-Flame Die Heat System
Reliable and safe heating keeps extrusion die ready to use.
Bead Dispense System
No tool system allows fast and flexible line width changes.
Split Bead Hopper System
Split Hopper holds over 90 pounds of beads. An optional conversion kit allows for dual bead application.
Fat Track Front Swivel Wheel
Proven front caster wheel system makes turning fast and easy.
Optional LineDriver Attachment
Get higher productivity and straighter lines with less fatigue. Move between jobs with out having to push.
Smart Die II
- Fast change-out system – hardened steel dies with mil thickness adjustment built in
- Use with or without heat – allows you to optimize striping in all weather conditions
- “Floats” with the surface – puts the thermoplastic where you want it for superior line quality
PART No: 258699
HOPPER SIZE: 300 lb
MELT TIME: 4 – 4.5 hrs
MAIN BURNERS: 30,000 BTU
TEMPERATURE LIMIT CONTROL: N/A
DIES AVAILABLE: SmartDie II – 4″ Die Included
EXTERNAL 4-TORCH DIE HEAT SYSTEM: Optional
The Graco Thermolazer 300TC thermoplastic Striping System is ideal for general roadway striping and small intersections.
