Airless Line Striper CH200AT

This Self-Propelled pavement marking truck is a great addition to our line of Single operator/one man operation stripers.

Add to quote
Part #/SKU 50112-000 Categories ,

Description

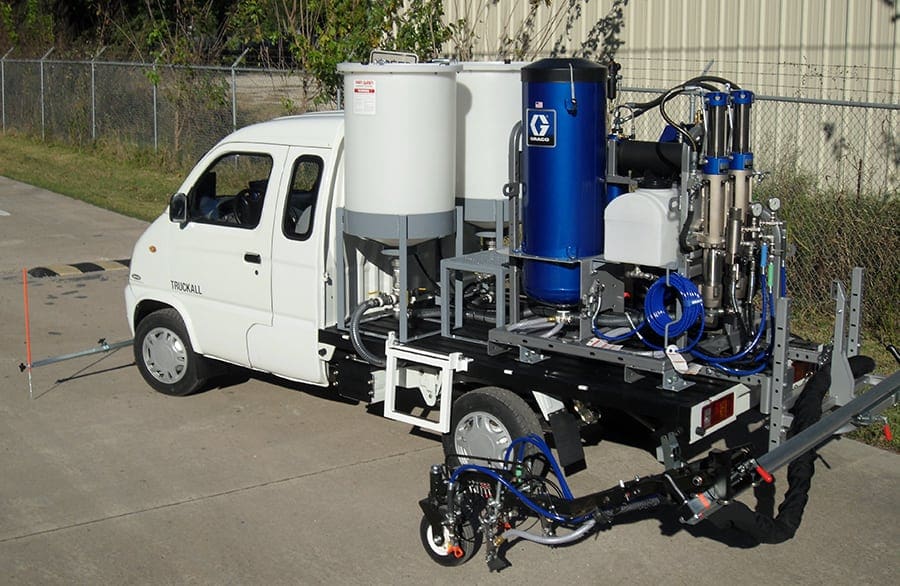

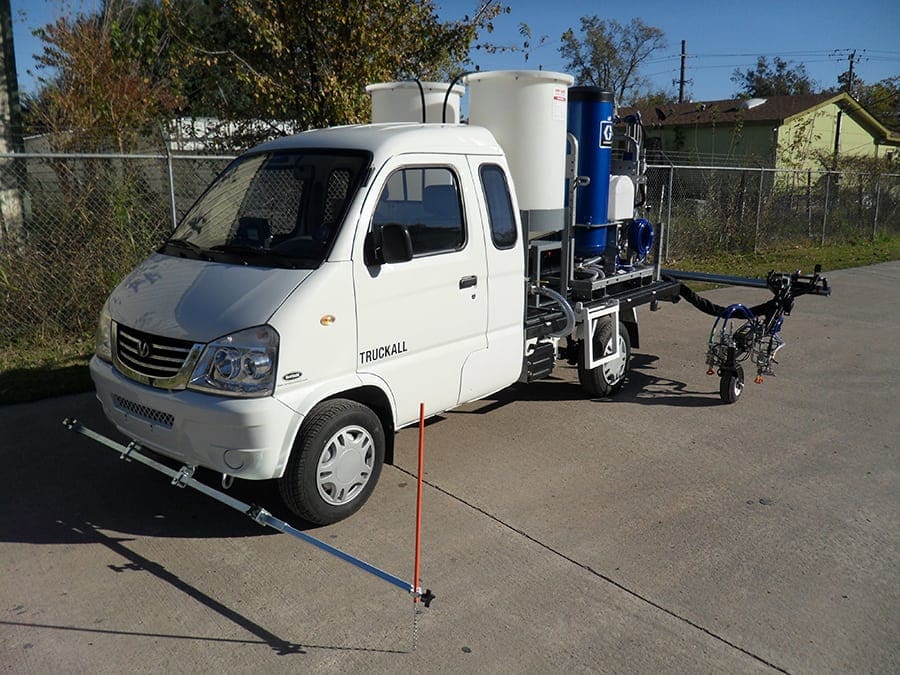

This Self-Propelled pavement marking truck is a great addition to our line of Single operator/one man operation stripers. Designed to apply both reflective and non-reflective, water based traffic paint. Capable of applying two colors in both solid and intermittent line patterns with line widths varying from 2 to 36″. While seated in the operator’s position, the single driver-operator shall be able to view both existing and newly painted lines.

Specifications

  • Overall Dimensions: 178″ L x 67′ W x 80″ H
  • Ground Clearance: 8.0 Inches
  • Electrical: 12-volt DC 45 AMP-Hour Batter, 70 AMP Alt
  • Heating/Air Conditioning: Bi-level controlled heating/air conditioning.



Sandard Features

  • Enclosed Cab/Parking Brake/Headlights/Stoplights/Fog Lights/Back Up Lights
  • Turn Signals/Audio Back-Up Signal/Doors Locks/Steering Column Lock
  • 3-Stage Windshield Wipers with Washer/3-Point Safety Belts/AM-FM Radio



Drive System

  • Engine: 4 cyclinders, 4 stoke O.H.C.
  • Drive Train: 5 Speed standard transmission
  • Ignition: Electronic
  • Steering: Rack and pinion
  • Brakes: 5.14 Hydraulic ABS
  • Fuel Capacity: 10.5 Gallons
  • Striping Speed: Up to 25 mph

Paint System

  • Stainless steel airless piston pump rated at 5 GPM with a maximum discharge press of 2900 PSI
  • Two (2) stainless steel automatic airless spray guns rated at 3000-PSI maximum pressure
  • Capability: apply pain from 2 – 12 inches in width (overall spary up to 36″ in single pass)
  • Skipline System: Electronic, includes footage counters

Bead System

  • Capacity: 450 lbs. (1- pressurized tank)
  • Bead Guns: Two GRaco Automatic Double Acting Guns

Line Guard Assembly

  • Extendible length of no less than 76″
  • Easily foldable for travel when machine is not in use
  • Adjustable lateral guide for left or right striping operations
