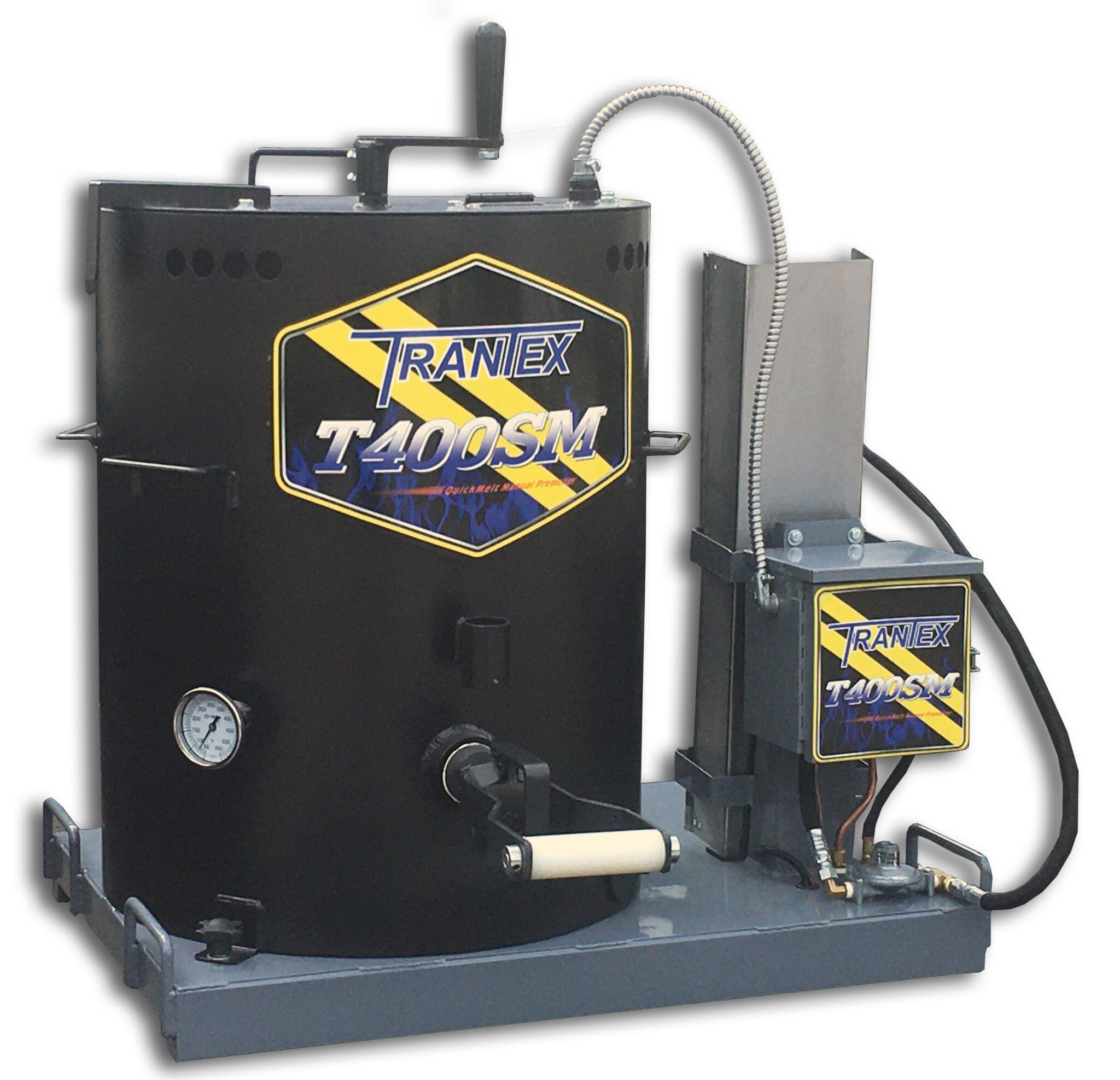

Thermoplastic Premelter | T400SM

The T400SM is designed to enhance production of 200 to 265 pound handliners.  Most handliners have just enough BTU’s to keep material warm, and traditionally fall short of effectively melting.  The T400SM weighs in at only 294 pounds and has a thermoplastic capacity of 400 pounds for a total combined weight of 694 pounds. This allows comfortable  and safe use with trucks as small as a half ton.  The material tank and baseplate are separable. This allows rapid color change (with optional second tank) and also aids in 2 person loading and unloading without a forklift. This allows two people to comfortably load and assemble.

Features and Benefits:

  • Double or triple your production with minimal investment
  • High output 100,000 BTU burner
  • Continuous molten material vs. repetitive heating and application

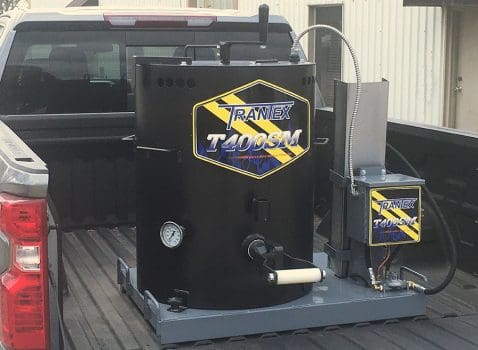

  • Dual premelter capability that fits and is weight appropriate for a half ton truck
  • Light weight allows two person loading and unloading by hand

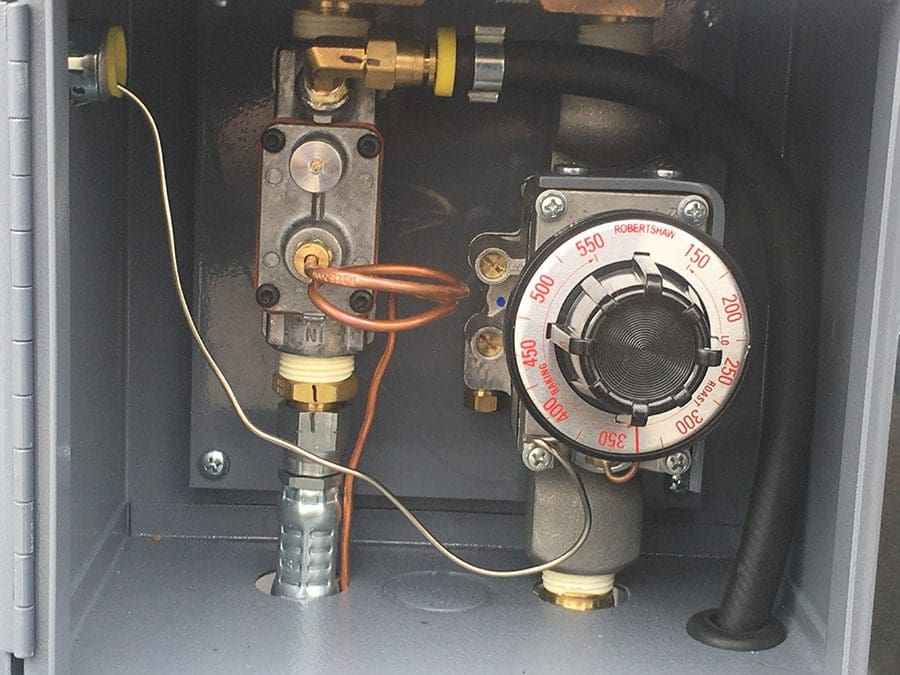

  • Automatic thermostat

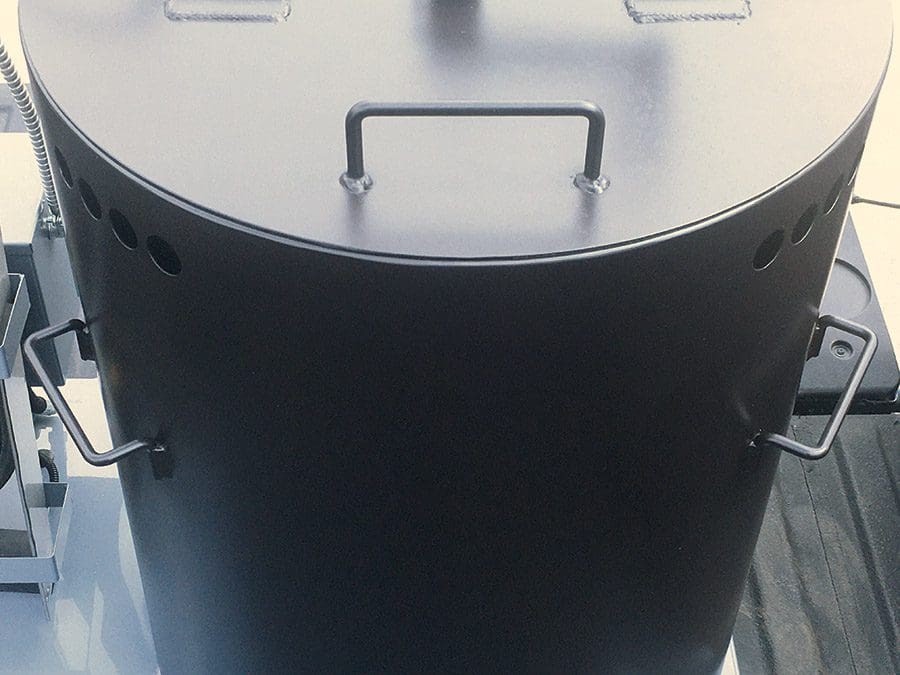

  • Four lifting handles for easy 2 man tank removal
  • Oversized 14″ auger with bottom bead sweep
  • Quick disconnect tank
  • More consistent and stable temperatures improve line quality

Empty weight:  tank 194 lbs. – baseplate 100 lbs.
Dimensions: 25″ L x 37″ W x 42″ H
