Spray Thermoplastic Applicator | 360SPS
Spray Thermoplastic Applicator 360SPS
Spray Thermoplastic Applicator | 360SPS
Spray Thermoplastic Applicator 360SPS
Spray Thermoplastic Applicator | 360SPS
Spray Thermoplastic Applicator | 360SPS

Spray Thermoplastic Applicator 360SPS

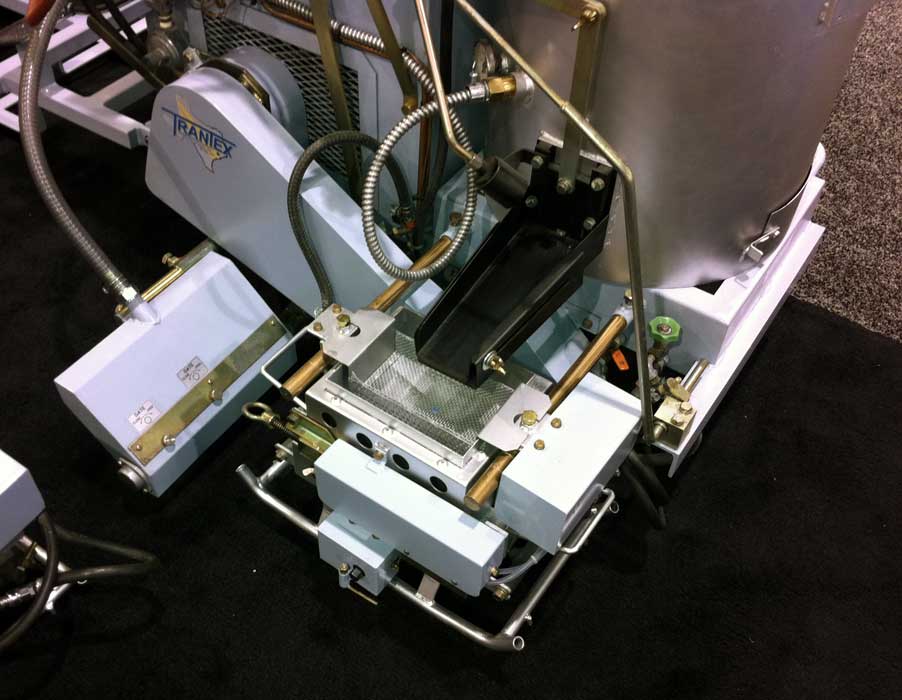

The Model 360SPS uses a unique non-pressure system that delivers spray-applied thermoplastic, with out the expense of a large truck mounted system. Unit comes standard with Hydrostatic Propulsion. Operator ride-on sulky is optional. Spray devices are available in various line widths.

Standard Features

  • Hydrostatic Self Propulsion drive allows infinite speeds, forward and reverse, up to 4 mph (7 kph)
  • 4”, 6”, 8”, or 12” airless spray guns available. Spray thickness: 25 mils. (.6mm) -125 mils. (3.0mm)
  • Variable width Glass Bead System with 4”, 6”, 8”, and 12” widths with the turn of a dial
  • 50 lb. Bead capacity
  • Automatic agitation system
  • Includes unique steering system that allows for straight steering or preset curve
  • 5.5 HP propane fired Honda Engine
  • Rear wheel offers straight track locked position or 360° swivel
  • 360 Pound Material Tank capacity
  • Auto thermostat regulates material temperature

Compact Size

  • Length: 54” (137 cm)
  • Width: 37” (94 cm)
  • Hieght: 52” (132 cm)
  • Weight: 600lbs. (272 kg)

Optional Equipment

  • Operator Ride-On Sulky with adjustable padded seat also provides additional propane storage.
  • Extra Material Tank – Lightweight material tank is easily removed for quick change of colors
  • Double Drop Glass Bead System for improved retro-reflectivity

Product Brochure

Spray Thermoplastic Applicator 360SPS

The Model 360SPS uses a unique non-pressure system that delivers spray-applied thermoplastic, with out the expense of a large truck mounted system.
