Description

Browse all Graco GrindLazer machines to find the right fit for your project. Want to compare this model? View our full GrindLazer comparison guide →

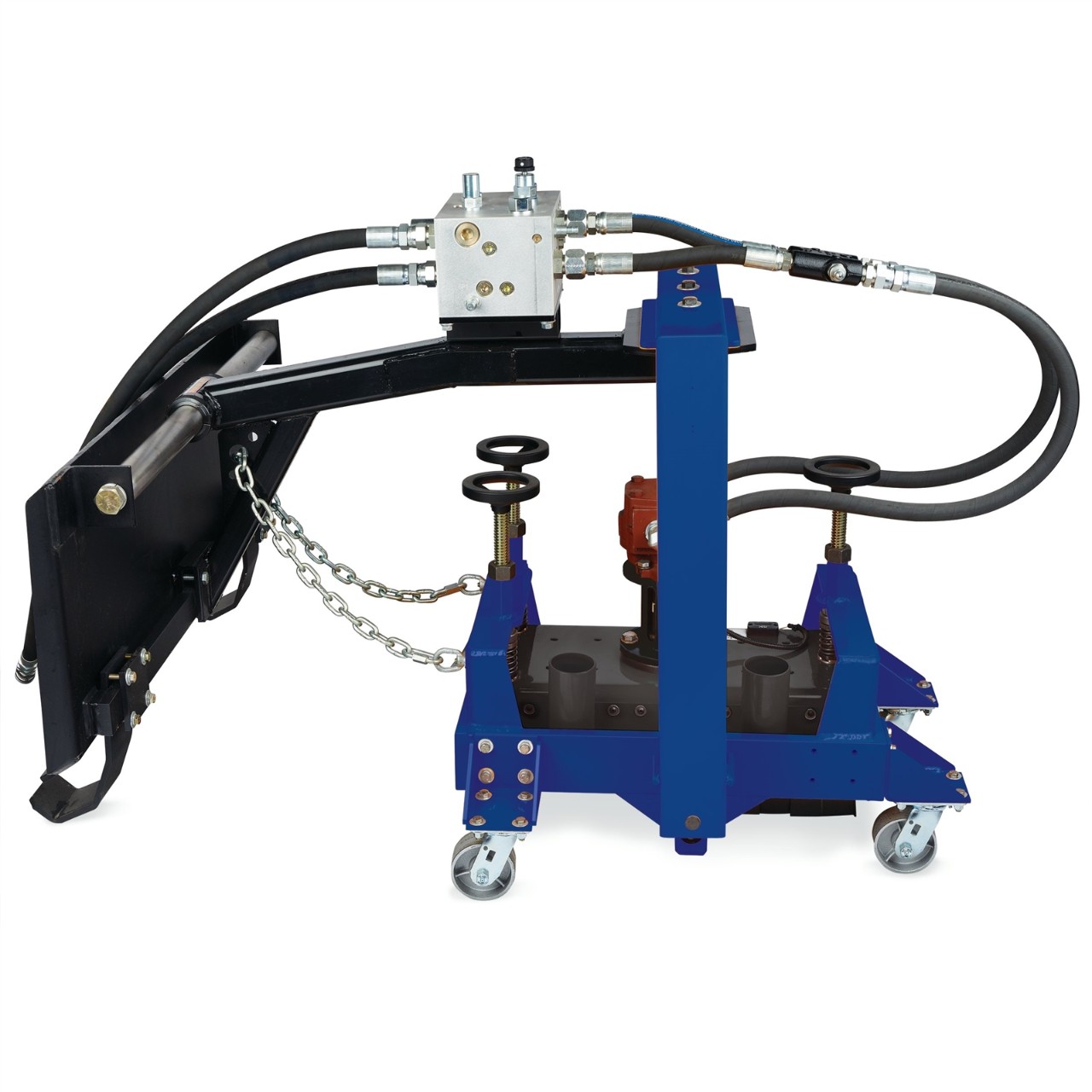

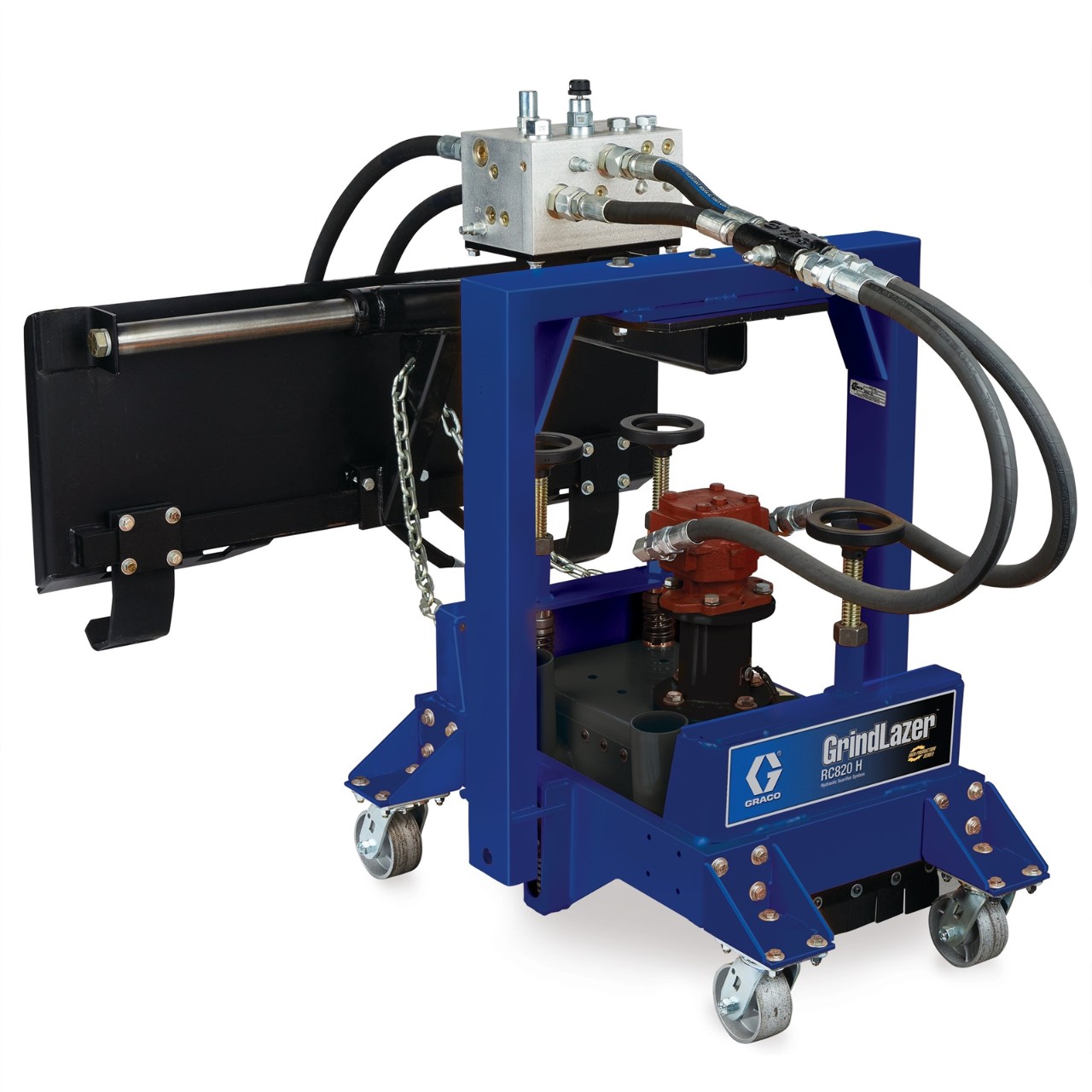

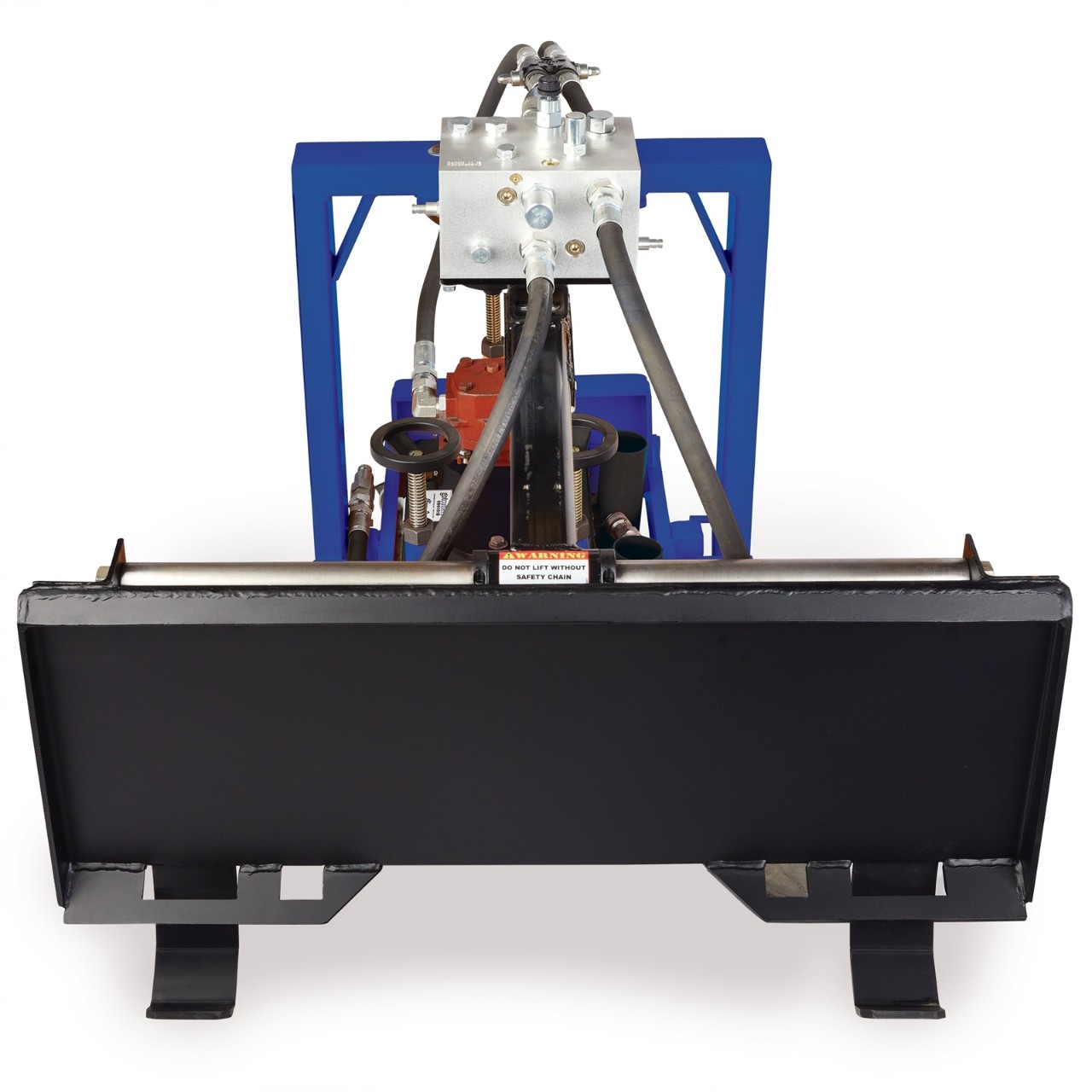

The Graco GrindLazer HP RC820 H is designed for high-volume pavement marking removal using a skid steer equipped with a low-flow hydraulic system. The rotary scarifier removes markings from asphalt and concrete surfaces without leaving grooves, making it suitable for line removal, surface preparation, and maintenance applications.

A single rotary cutter head removes an 8-inch path while the spring suspension allows the cutter assembly to follow uneven surfaces for more consistent material removal. The manual depth control system provides multi-point adjustment for accurate cutting depth, and the universal quick-attachment backplate allows tool-free installation on most skid steer loaders.

The heavy-duty steel frame is built for demanding jobsite conditions, and the integrated vacuum port connects to the Graco LazerVac vacuum system to help control dust during operation. Different rotary cutter assemblies are available to match various marking removal applications.

GrindLazer HP RC820 H Hydraulic-Powered Scarifier Features:

• Cutter Type: Rotary

• Max Working Width: 8 in

• Engine/Motor: 20 HP Hydraulic

• TACH/Hour Meter: Yes

• Max Cut Rate (LineDriver/Skid Loader): 1,000 sq ft/hr

• Vacuum Ports: Yes

• Water Connection: No

• Electronic Depth Control System: No
