Graco GrindLazer Comparison:
Graco GrindLazer Comparison: Which Model is Right for You?
Browse Graco GrindLazer Grinders & Scarifiers
Ready to choose the right surface preparation equipment? Explore our full selection of Graco GrindLazer grinders and scarifiers, including models designed for concrete surface preparation, coating removal, line stripe removal, trip hazard repair, and general pavement restoration.
Compare Graco GrindLazer models side by side to find the best machine for your application. This guide highlights key differences in cutting width, power source, performance, and recommended applications, helping you choose the right GrindLazer for your next project.
Why Choose a Graco GrindLazer?
- Delivers consistent surface preparation results
- Removes coatings, epoxy, paint, and traffic markings
- Models available for projects of every size
- Designed for durability in demanding jobsite conditions
- Easy to maintain with interchangeable cutter options
- Trusted by contractors and pavement maintenance professionals
Quick Recommendation​
- Light Surface Preparation: GrindLazer 390
- General Concrete Grinding: GrindLazer 480
- Heavy-Duty Surface Removal: GrindLazer HP DC89 G
Comparison & Specifications
STANDARD SERIES
GrindLazer DC87 G
Cutter Type: Drum
|
Applications
|
Traffic Paint Removal Thermoplastic Removal Smoothing Uneven Surfaces |
|---|---|
|
Max Width
|
8" |
|
Engine/Motor
|
6.5 HP Honda |
|
Max Cut Rate
|
300 sq ft/hr |
|
LineDriver *
|
No |
|
Vacuum Port
|
Yes |
|
Water Port
|
Optional |
|
Weight
|
150 lb |
STANDARD SERIES
GrindLazer DC89 G
Cutter Type: DrumÂ
|
Applications
|
Traffic Paint Removal Thermoplastic Removal Smoothing Uneven Surfaces |
|---|---|
|
Max Width
|
8" |
|
Engine/Motor
|
9 HP Honda |
|
Max Cut Rate
|
400 sq ft/hr |
|
LineDriver *
|
No |
|
Vacuum Port
|
Yes |
|
Water Port
|
Optional |
|
Weight
|
160 lb |
PRO SERIES
GrindLazer DC1013 G
Cutter Type: Drum
|
Applications
|
Traffic Paint Removal Thermoplastic Removal Epoxy Removal |
|---|---|
|
Max Width
|
10" |
|
Engine/Motor
|
13 HP Honda |
|
Max Cut Rate
|
700 sq ft/hr |
|
LineDriver *
|
No |
|
Vacuum Port
|
Yes |
|
Water Port
|
Optional |
|
Weight
|
230 lb |
PRO SERIES
GrindLazer DC1013 G DCS
Cutter Type: Drum
|
Applications
|
Traffic Paint Removal Thermoplastic Removal Epoxy Removal |
|---|---|
|
Max Width
|
10" |
|
Engine/Motor
|
13 HP Honda |
|
Max Cut Rate
|
700 sq ft/hr |
|
LineDriver *
|
No |
|
Vacuum Port
|
Yes |
|
Water Port
|
Optional |
|
Weight
|
260 lb |
HIGH PRODUCTION SERIES
GrindLazer DC1013 G
Cutter Type: Drum
|
Applications
|
Traffic Paint Removal Thermoplastic Removal Epoxy Removal |
|---|---|
|
Max Width
|
10" |
|
Engine/Motor
|
13 HP Honda |
|
Max Cut Rate
|
800 sq ft/hr |
|
LineDriver *
|
Optional |
|
Vacuum Port
|
Yes |
|
Water Port
|
Optional |
|
Weight
|
310 lb |
HIGH PRODUCTION SERIES
GrindLazer DC1013 G DCS
Cutter Type: Drum
|
Applications
|
Traffic Paint Removal Thermoplastic Removal Epoxy Removal |
|---|---|
|
Max Width
|
10" |
|
Engine/Motor
|
13 HP Honda |
|
Max Cut Rate
|
800 sq ft/hr |
|
LineDriver *
|
Optional |
|
Vacuum Port
|
Yes |
|
Water Port
|
Optional |
|
Weight
|
340 lb |
HIGH PRODUCTION SERIES
GrindLazer DC1021 G
Cutter Type: Drum, Reverse Cut
|
Applications
|
Traffic Paint Removal Thermoplastic Removal Epoxy Removal |
|---|---|
|
Max Width
|
10" |
|
Engine/Motor
|
21 HP Vanguard |
|
Max Cut Rate
|
2,100 sq ft/hr |
|
LineDriver *
|
Required |
|
Vacuum Port
|
Yes |
|
Water Port
|
Optional |
|
Weight
|
350 lb |
HIGH PRODUCTION SERIES
GrindLazer DC1021 G DCS
Cutter Type: Drum, Reverse Cut
|
Applications
|
Traffic Paint Removal Thermoplastic Removal Epoxy Removal |
|---|---|
|
Max Width
|
10" |
|
Engine/Motor
|
21 HP Vanguard |
|
Max Cut Rate
|
2,100 sq ft/hr |
|
LineDriver *
|
Required |
|
Vacuum Port
|
Yes |
|
Water Port
|
Optional |
|
Weight
|
360 lb |
PRO SERIES
GrindLazer RC813 G
Cutter Type: Rotary
|
Applications
|
Traffic Paint Removal Thermoplastic Removal Surface Prep |
|---|---|
|
Max Width
|
8" |
|
Engine/Motor
|
13 HP Vanguard |
|
Max Cut Rate
|
800 sq ft/hr |
|
LineDriver *
|
No |
|
Vacuum Port
|
Yes |
|
Water Port
|
No |
|
Weight
|
450 lb |
PRO SERIES
GrindLazer Pro RC813 G DCS
Cutter Type: Rotary
|
Applications
|
Traffic Paint Removal Thermoplastic Removal Surface Prep |
|---|---|
|
Max Width
|
8" |
|
Engine/Motor
|
13 HP Honda |
|
Max Cut Rate
|
800 sq ft/hr |
|
LineDriver *
|
No |
|
Vacuum Port
|
Yes |
|
Water Port
|
No |
|
Weight
|
460 lb |
HIGH PRODUCTION SERIES
GrindLazer RC820 H
Cutter Type: Rotary
|
Applications
|
Traffic Paint Removal Thermoplastic Removal Surface Prep |
|---|---|
|
Max Width
|
8" |
|
Engine/Motor
|
20 HP Hydraulic |
|
Max Cut Rate
|
1,000 sq ft/hr |
|
SkidLoader*
|
Yes |
|
Vacuum Port
|
Yes |
|
Water Port
|
No |
|
Weight
|
480 lb |
HIGH PRODUCTION SERIES
GrindLazer RC1640 H
Cutter Type: Rotary
|
Applications
|
Traffic Paint Removal Thermoplastic Removal Surface Prep |
|---|---|
|
Max Width
|
16" |
|
Engine/Motor
|
40 HP Hydraulic |
|
Max Cut Rate
|
2,400 sq ft/hr |
|
SkidLoader*
|
Yes |
|
Vacuum Port
|
Yes |
|
Water Port
|
No |
|
Weight
|
956 lb |
HIGH PRODUCTION SERIES
GrindLazer RC1625 G
Cutter Type: Rotary
|
Applications
|
Traffic Paint Removal Thermoplastic Removal Surface Prep |
|---|---|
|
Max Width
|
16" |
|
Engine/Motor
|
25 HP Kohler Gas |
|
Max Cut Rate
|
2,400 sq ft/hr |
|
SkidLoader*
|
Yes |
|
Vacuum Port
|
Yes |
|
Water Port
|
No |
|
Weight
|
956 lb |
HIGH PRODUCTION SERIES
GrindLazer HP DC1538 G DCS
Cutter Type: Drum
|
Applications
|
Leveling Surfaces Inlay and Grooving Traffic Markings Removal |
|---|---|
|
Max Width
|
15" |
|
Engine/Motor
|
38 HP Kohler EFI Gas |
|
Max Cut Rate
|
3,500 sq ft/hr |
|
LineDriver*
|
No |
|
Vacuum Port
|
2 |
|
Water Port
|
No |
|
Weight
|
725 lb |
HIGH PRODUCTION SERIES
GrindLazer DC1525 P DCS
Cutter Type: Drum
|
Applications
|
Leveling Surfaces Inlay and Grooving Traffic Markings Removal |
|---|---|
|
Max Width
|
16" |
|
Engine/Motor
|
25 HP Kohler EFI Propane |
|
Max Cut Rate
|
3,500 sq ft/hr |
|
LineDriver*
|
No |
|
Vacuum Port
|
2 |
|
Water Port
|
No |
|
Weight
|
715 lb |
HIGH PRODUCTION SERIES
GrindLazer DC1520 E DCS
Cutter Type: Drum
|
Applications
|
Leveling Surfaces Inlay and Grooving Traffic Markings Removal |
|---|---|
|
Max Width
|
15" |
|
Engine/Motor
|
20 HP, 480v, 3ph |
|
Max Cut Rate
|
3,500 sq ft/hr |
|
LineDriver*
|
No |
|
Vacuum Port
|
2 |
|
Water Port
|
No |
|
Weight
|
910 lb |
Common Uses of Graco GrindLazer Surface Preparation Machines
Graco GrindLazer surface preparation machines are designed to remove coatings, traffic markings, and damaged concrete while preparing surfaces for repair or new coatings. Built for durability and consistent performance, GrindLazer equipment helps contractors, municipalities, and facility managers complete a wide range of concrete and asphalt surface preparation projects with precision and efficiency.
Concrete Surface Preparation
Prepare concrete floors, sidewalks, and slabs for coatings, overlays, polishing, or repairs by removing surface contaminants and creating the proper profile for adhesion.
Coating & Epoxy Removal
Remove epoxy, paint, sealers, adhesives, and other surface coatings from concrete floors and pavement prior to resurfacing or recoating.
Trip Hazard & Concrete Repair
Level uneven concrete, eliminate trip hazards, and prepare damaged surfaces before patching or repair to improve safety and extend pavement life.
Industrial & Municipal Applications
Ideal for warehouses, manufacturing facilities, parking structures, airports, municipalities, and other commercial environments requiring professional surface preparation.
QuikCut PCD Profiles

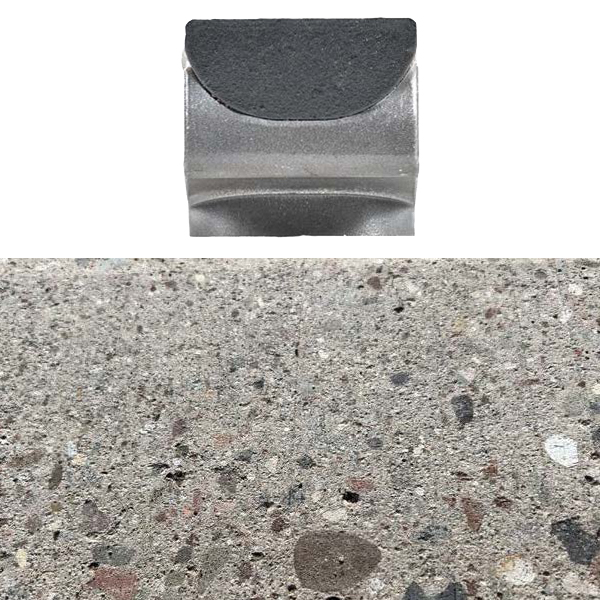

QuikCut PCD - Flat
Creates flat profile that’s ideal for traffic paint and thin coatings

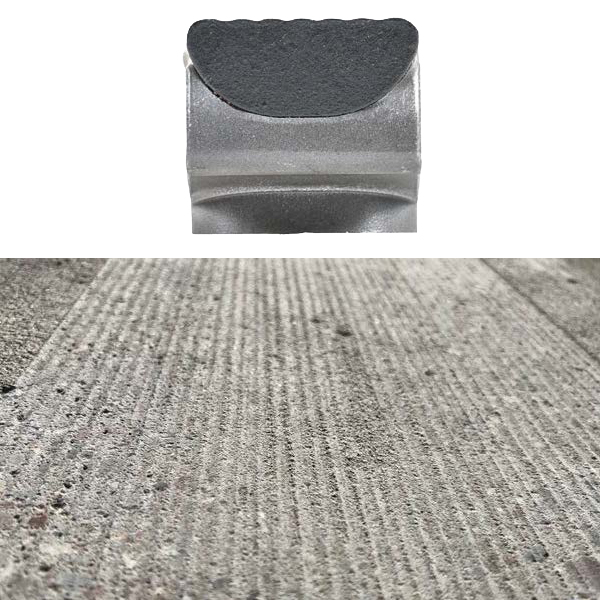

QuikCut PCD - Fine
Creates light profile that provides increased adhesion for durable traffic markings and floor coatings

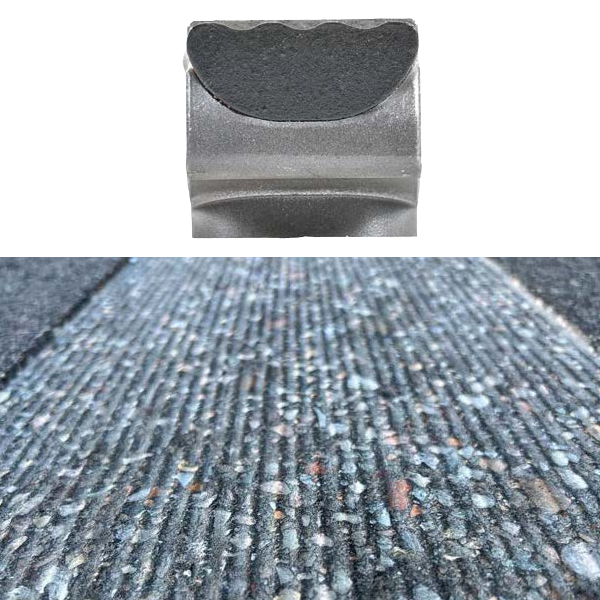

QuikCut PCD - Coarse
Creates coarse profile that’s ideal for thick coatings and aggressive removal
Graco GrindLazer
Graco GrindLazer surface preparation machines are trusted by contractors, municipalities, and facility managers for delivering professional concrete grinding, scarifying, and coating removal performance. Designed for durability and precision, GrindLazer equipment efficiently removes traffic markings, coatings, adhesives, and surface imperfections while preparing concrete and asphalt for repairs or new applications.
By comparing GrindLazer models side by side, you can quickly identify the right machine based on your application, production requirements, and surface preparation needs. From light coating removal to heavy-duty concrete grinding and scarifying, this comparison helps you choose the best GrindLazer for consistent, professional results on every project.
Why contractors choose GrindLazer: With proven Graco performance and rugged construction, GrindLazer machines deliver reliable concrete grinding, scarifying, and surface preparation for coating removal, pavement restoration, and demanding commercial applications.
Frequently Asked Questions About Graco GrindLazer Machines
Common applications include concrete surface preparation, traffic marking removal, epoxy and coating removal, trip hazard repair, pavement restoration, surface profiling, and general concrete maintenance.
GrindLazer machines are commonly used on concrete and asphalt surfaces, including parking lots, sidewalks, warehouses, industrial floors, roadways, bridges, and airport pavements.
The best GrindLazer depends on the type of pavement marking and the size of the project. Compact models are suitable for small line removal jobs, while larger models provide greater productivity for removing traffic markings on roads, parking lots, airports, and other commercial surfaces.
Yes. Graco GrindLazer machines are designed to remove epoxy, paint, sealers, adhesives, thermoplastic markings, and other surface coatings. The type of cutter or drum used will affect the removal rate and surface profile.
Graco GrindLazer models vary in engine power, cutting width, production capacity, and recommended applications. Smaller models are ideal for light surface preparation and coating removal, while larger models are designed for heavy-duty concrete grinding, scarifying, and large-scale pavement restoration. Comparing specifications helps you choose the right machine for your workload.
Consider the size of your project, the material you need to remove, the required production rate, and the desired surface profile. Our comparison guide makes it easy to compare features, specifications, and applications to find the best GrindLazer for your needs.
Yes. Graco GrindLazer equipment is engineered for professional contractors, municipalities, DOT agencies, and industrial maintenance teams that require dependable performance and consistent surface preparation results.
You can browse our complete selection of Graco GrindLazer machines and compare available models to find the equipment that best fits your application. Our team can also help you choose the right machine and accessories for your project.
