Description

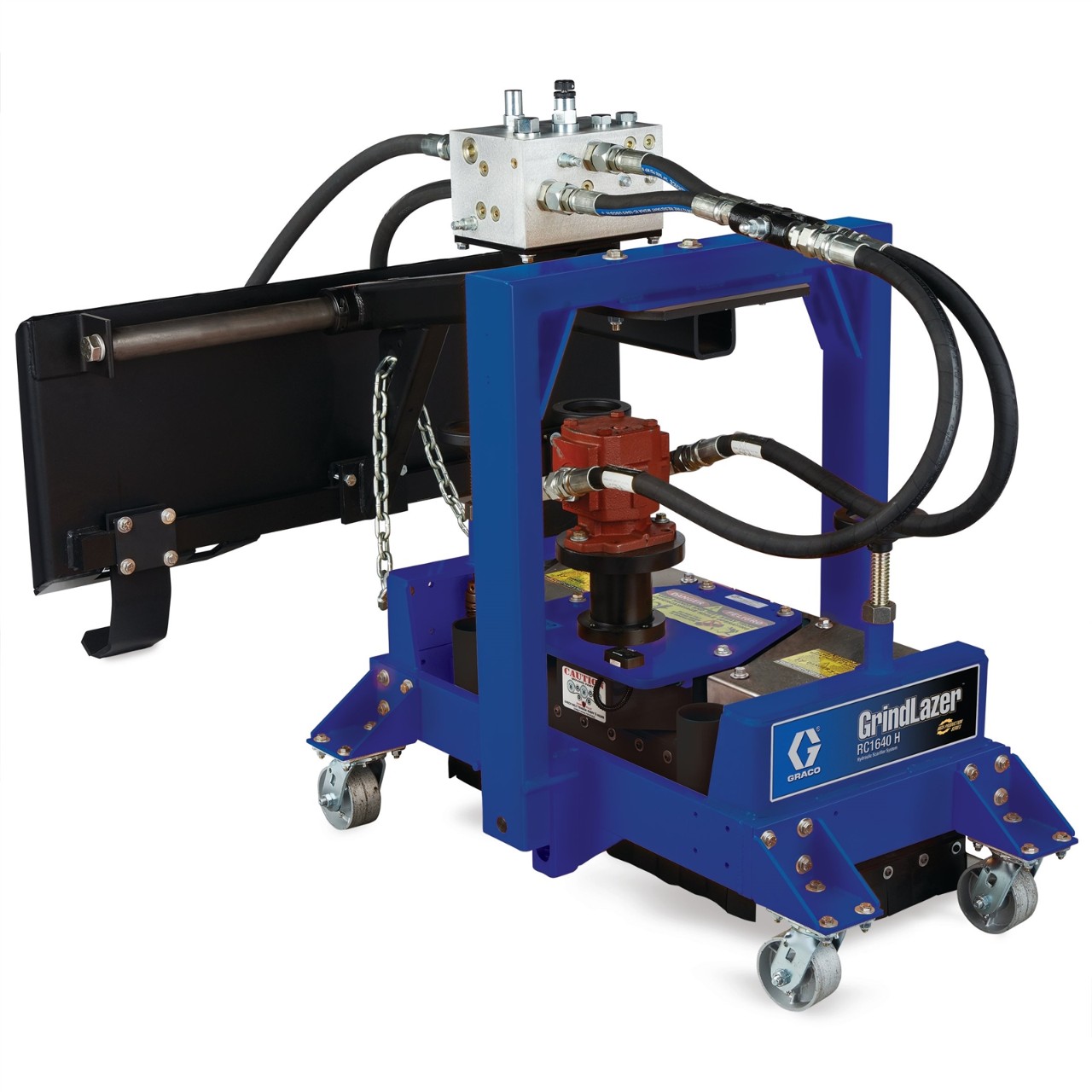

The Graco GrindLazer HP RC1640 H is designed for high-production pavement marking removal using a skid steer equipped with a high-flow hydraulic system. The rotary scarifier removes pavement markings from asphalt and concrete surfaces without leaving grooves, making it suitable for line removal, surface preparation, inlay, and coating removal applications.

The RC1640 H uses 3 rotary cutter assemblies to remove a path up to 16 inches wide, increasing productivity on large-scale removal projects. The spring suspension allows the cutter assemblies to follow uneven surfaces for more consistent material removal, while the manual depth control system provides accurate depth adjustment. A universal quick-attachment backplate allows tool-free installation on most skid steer loaders.

Built with a heavy-duty steel frame for demanding jobsite conditions, the RC1640 H also features a vacuum port for connection to the Graco LazerVac vacuum system to help control dust during operation.

Graco GrindLazer HP RC1640 H Hydraulic-Powered Scarifier Features:

• Cutter Type: Rotary

• Max Working Width: 16 in

• Engine/Motor: 40 HP Hydraulic

• TACH/Hour Meter: Yes

• Max Cut Rate (LineDriver/Skid Loader): 2,400 ft/hr

• Vacuum Ports: Yes

• Water Connection: No

• Electronic Depth Control System: No
