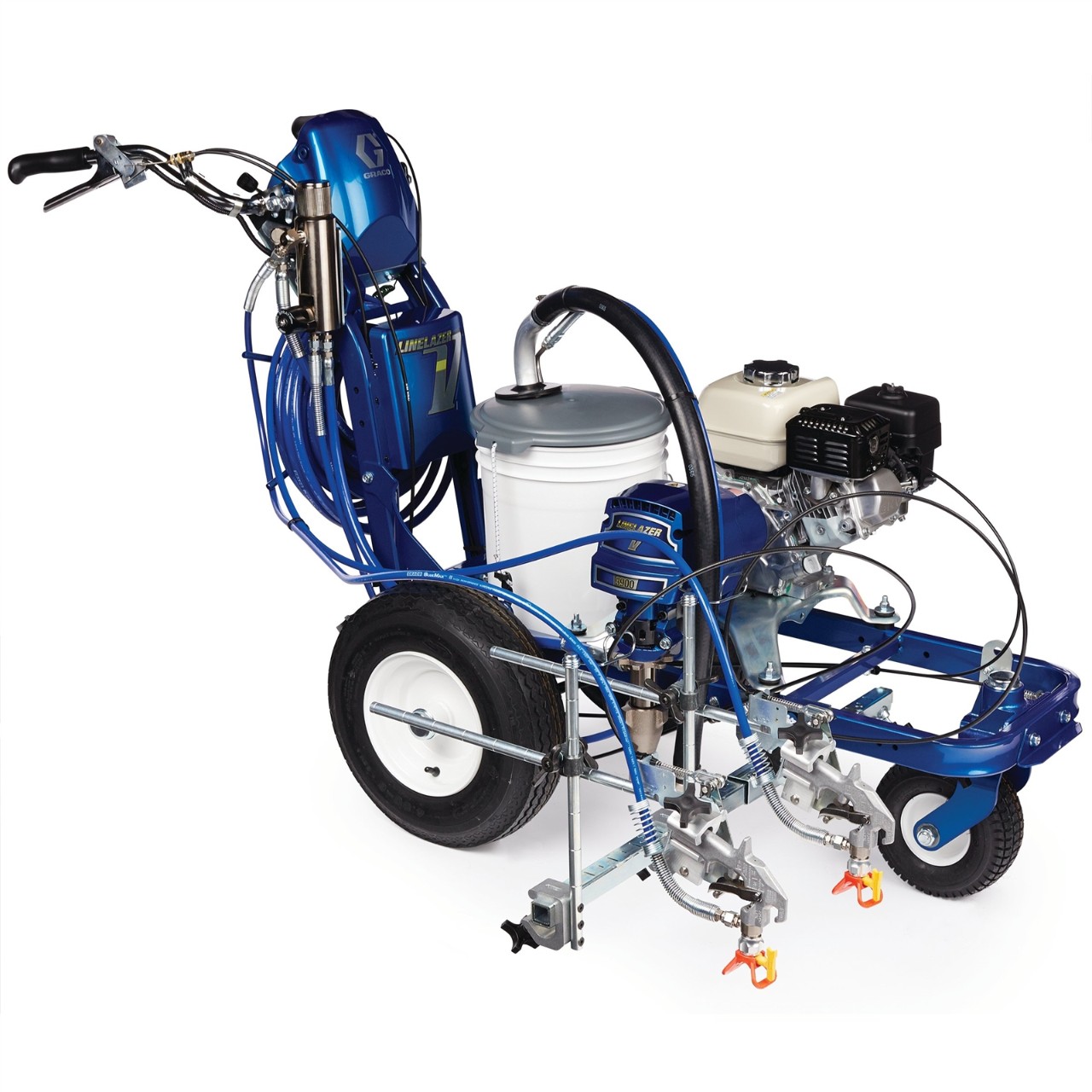

The LineLazer V 3900 is the airless line striping choice for professional striping contractors who want the industry’s best striping unit. When it’s time for 2-gun performance, no one does it better than Graco. Designed to deliver the most precise and consistent lines in the industry, it is the perfect choice for new lot layouts, medium to large parking lots, small city jobs and even big malls. With the option to add a LineDriver, the performance of the LineLazer V 3900 is unmatched.

Advanced Vibration Reduction System
• Removes engine vibration, taking line quality to the next level
• Up to 60% less vibration at the spray tip than the competition

Rear Gun Mount System
• Ability to place the guns near the rear axle for applying straighter long lines and smoother curved lines
• Better gun visibility, especially on glassbead applications

Lightweight Gun Holder
• Lighter to minimize gun movement caused by rough pavement conditions
• Durable, extruded aluminum design
• Spring-assisted cable return for positive gun shut-off

Chromex Pump Rod
• Long life rod treatment built for the most demanding applications
• 4 times harder than ordinary chrome

Flow-Through Easy Out Filter
• Filter screen removes with the cap for convenient, mess-free access
• Flow-through design flushes faster for quicker color changes
• Filters from the inside out

Max Tip Size:
• .036 (One Gun) – 253920
• .025 (Two Gun) – 253953
Max psi/bar: 3300/227
Max gpm/lpm: 1.25/4.7
Weight lbs/kg: 212/96
Engine Size: 120cc Honda GX
Fuel Tank Capacity gallons/liters: 0.66/2.5
Dimensions Inches/Centimeters: 32W x 40H x 65L / 81.3W x 101.6H x 165.1L
Material Sprayed: Most heavy, low VOC, waterborne and rubberized traffic paints
Typical Applications:
• Continuous, heavy-duty line striping requirements
• Parking Lot Layout
Repair Kits:
• Gun – 235474
• Pump – 248212
Instruction Manuals:
• Operation – 312190
• Repair – 312195
• Application Methods – 312307
• Pump 310643

Documents:
LineLazer V 3900 and 5900 Operation Manual
LineLazer V 3900 and 5900 Repair and Parts
LineLazer Product Brochure
