Description

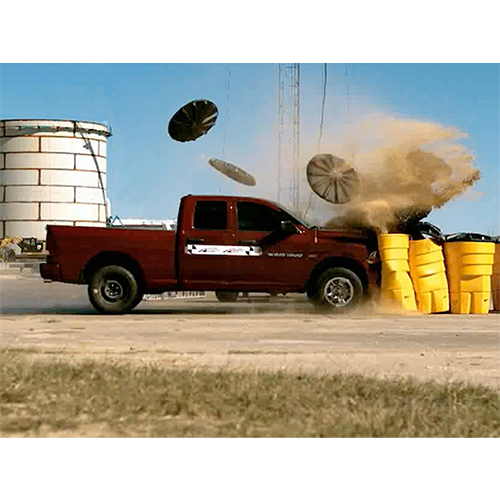

The system is a non-redirective crash cushion designed to protect drivers from fixed objects like bridge abutments or signposts. When a vehicle collides with the system, it absorbs the impact, which significantly reduces the force of the crash and prevents the car from hitting the object behind it. This system is effective for roads with posted speed limits ranging from 25 to 75 mph.

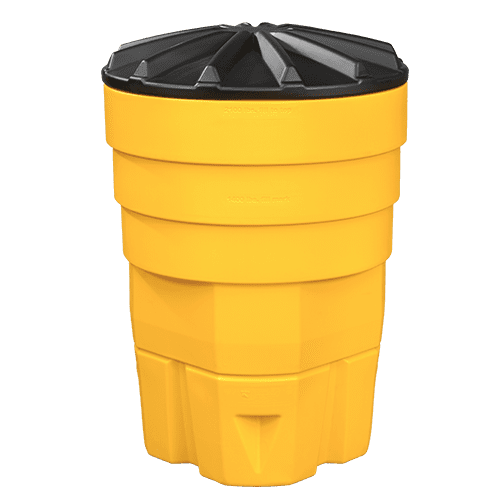

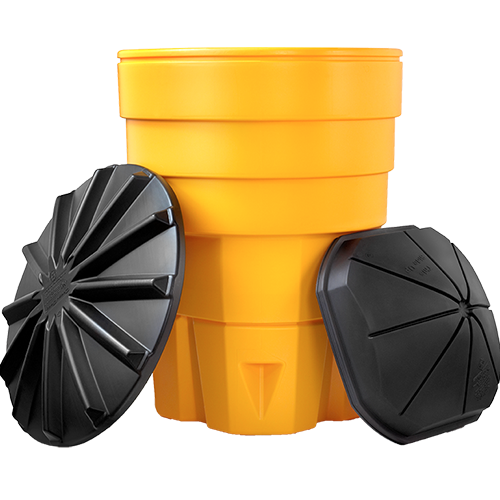

Crafted for convenience, the impact barrel is simple to transport and store. The squared bottom allows for easy handling with a forklift, and the tiered top is designed to work with a hoist. This design enables the barrels to be nested together, saving a significant amount of space during storage. Additionally, it is designed to accommodate both 4-inch and 6-inch retro-reflective sheeting, ensuring compliance with all state and federal visibility standards.

Impact Sand Barrel Features:

• Barrel Dimensions: 36-inch diameter, 48-inch height

• Insert Dimensions: 27-inch square, 10.8-inch height

• Lid Dimensions: 36-5-inch diameter, 7-inch height

• Capacity: One barrel accommodates all weight requirements (200, 400, 700, 1400, and 2100 pounds)

• Material: Blow-molded from high molecular, high-density polyethylene plastic (HLMI/HDPE) for a stronger sand barrel

• Durability: UV stabilizers maximize product life, and color-stable pigments resist fading

• Storage: Barrels nest easily for convenient storage
