Description

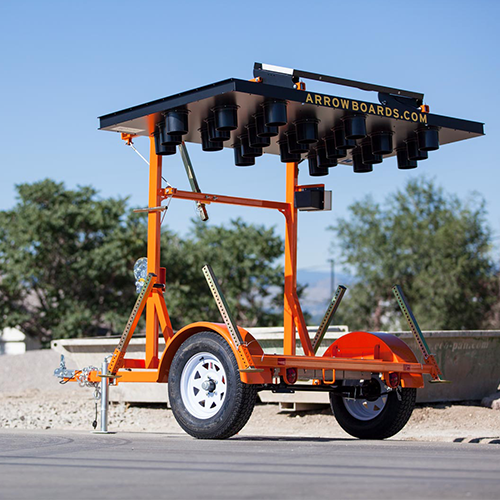

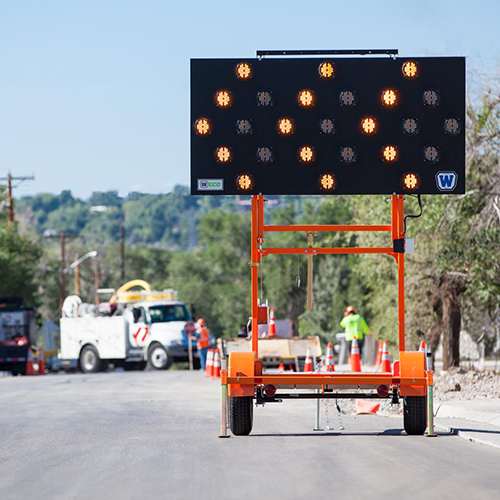

Deploying the arrow board is straightforward for a single person, thanks to a heavy-duty winch equipped with a safety brake. Once raised, a secure locking device holds the board firmly in place. The entire unit is made from rigid tubular steel, with all joints expertly welded to ensure maximum strength. If any parts are ever damaged, the bolt-on fenders can be easily replaced.

The design provides full support for the arrow board while it is in the travel position, eliminating the need for rear braces. This ensures that the board does not contact any other surfaces during transport, significantly reducing the risk of damage that commonly affects other arrow boards.

Wanco’s W|ECO arrow boards are designed with environmental sustainability in mind. They are equipped with highly efficient LED lights and sealed batteries. What sets them apart is Wanco’s exclusive LED technology, which consumes 85% less power than the LEDs used in standard arrow boards.

Folding Arrow Boards Features:

• Display Options: 15-light, 7 patterns or 25-light, 12 patterns

• Mounting Options: Combo-hitch for 2-inch ball and 2 1/2-inch pintle hook | Standard lunette ring for 2 1/2-inch pintle hook | Swivel jacks

• Power: Additional solar, Additional battery, or 2-amp battery charge

• Power System: Power system includes reverse polarity protection and low-voltage disconnect circuit

• Weight: 1250 lb

• Operation: Easy to operate and maintain

• Visibility: High-output LEDs provide superior visibility

• Models: Available in 15, and 25 light models

• Display Modes: Features 5, 7, or 12 arrow display modes

• Operation: Easy to operate and maintain

• Winch: Heavy-duty hand-winch with safety brake allows one person to raise the board

• Locking: A single locking device holds the arrow board in place while operating and during transport

• Controller: The Controller is located safely away from traffic

• Control Box: Weather-resistant control box cover has a lockable slam-latch

• Protection: Control box outputs have short-circuit protection, helping prevent blown transistors

• Dimming: The Arrow display has automatic dimming

• Stability: Stabilizer legs raise tires off the ground to provide stability in high winds

• Compliance: Meets MUTCD guidelines
